Hi-Gear Bow Shackle 1" inch D-Ring 51 Ton 102000 Lbs Maximum Break Strength WLL Working Load Limit 8.5 Tons 18700 lbs 1-1/8' Screw Pin Heavy Duty Lifting Rigging Recovery (Blue)
4.1 (116 items)
Limited Time Sale$16.19 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218118845 | Release Date | 2026/05/03 | List Price | $10.80 | Model Number | 218118845 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

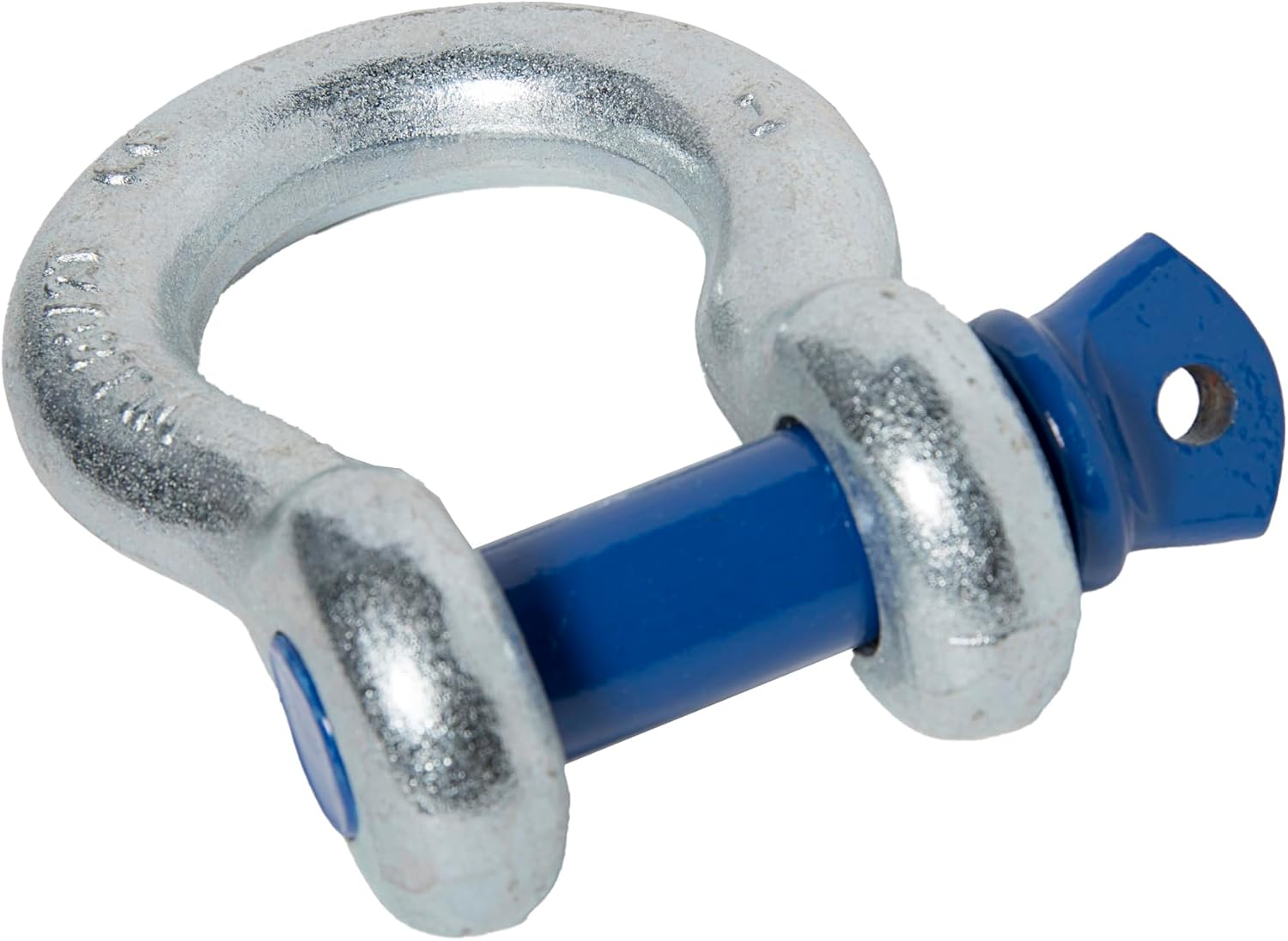

Premium 1" Bow Shackle from Hi-Gear Products. Constructed from 1" thick, ultra-high tensile strength steel. Powder coating paint offers an excellent protection from rust and corrosion as it maintains the shackle’s strength, durability and stronger erosion resistance providing longer service life. Features a threaded screw pin 1.14" in diameter ideal for both swift fastening and removal. As opposed to narrower D-Shackles, the larger "O" loops on these bow shackles are designed to take loads from multiple directions without developing unsafe side loading. Working load limit of 8-1/2 tons (18,500lbs). A generous 2.65" wide space inside the "O" shape accepts multiple connection points and larger straps or connections for all of your rigging, pulling and hoisting needs. Shackle measurement are shown on the pictures. Threaded pin is easily removable.
- 1" std size with Clevis Threaded Pin Diameter 1.14"
- Working Load Limit (WLL), Do Not Exceed: 8.5 Tons (17,500 lbs)
- Breaking Load: 51 Tons (102,000 lbs)
- Material: Forged Steel. Surface: Powder coating paint in Blue
| Brand | HI-GEAR |
|---|---|
| Item Weight | 5.02 pounds |
| Manufacturer | Alfa Wheels |
| Package Dimensions | 7.99 x 6.61 x 4.72 inches |
| Manufacturer Part Number | BS-1- |
